Mitsubishi Evo 6 - ABS Delete Kit-Standard External Braided Brake Line Kit

ABS Delete (External Fitting) Kit

A Proline Braided Lines ABS Delete Kit is a must for any track/race or rally car. By removing your ABS, your car’s braking performance on track is improved with a stronger pedal feel due to no more intrusive ABS systems. Removing the ABS also frees up space in your engine bay and saves weight while putting you, the driver, back in control.

An External ABS Delete Kit replaces all your car’s old corroded hard lines with hard drawn tensile stainless steel braided hose with the highest quality stainless steel fittings swaged in house.

Kits are designed to retain the original caliper flexi lines so if you haven’t already upgraded to braided caliper lines check out our braided brake line kits.

An external fitting kit keeps your rear brake lines on the outside of your car with the rear line running underneath your car and mounting a tee piece on the underside of the rear. With an external kit a bias valve and hydraulic handbrake can’t be used but if you would like to use either of these check out our internal kits.

Don’t risk using inferior products when it comes to your brake lines. Most of our competitors use zinc plated fittings which are still susceptible to corrosion; fit a brake line you can trust.

With our stainless steel fittings and line we can offer a lifetime guarantee.

We offer a large range of kits but if you can’t find one to suit your vehicle and would like a custom kit made, please get in touch and we will be more than happy to help you out.

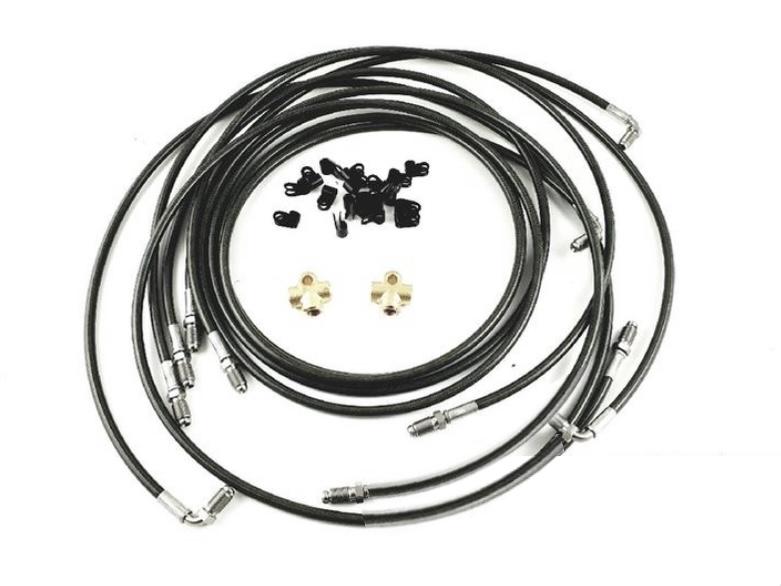

KIT INCLUDES

• 1 Line from the BMC to a tee piece for the front section
• 2 Lines from a tee piece to both N/S/F and O/S/F inner wings/wheel arches
• 1 Line from BMC to a tee piece for the rear section
• 2 Rear lines from a tee piece to both N/S/R and O/S/R inner wings/wheel arches
• 2 Tee brass pieces
• 20 6mm Black P clips
• Stainless steel banjo bolts (If required)
• Copper crush washers (If required)

SPECIFICATION

Line Inner Material PTFE

Line Outer Material Stainless Steel Braid with a PVC Cover

Fitting Material Stainless Steel (303/304)

Temperature Range -70°C to 260°C (-94°F to 500°F)

Inside Diameter 3.5mm

Outside Diameter 7.5mm

Maximum Working Pressure 290 Bar (4206 PSI)

Bursting Pressure 870 Bar (12618 PSI)

Minimum Bend Radius 38mm

These images are for illustration purposes only the product you receive will be specific for your vehicle
